AWM 20276

Date:2018-3-21

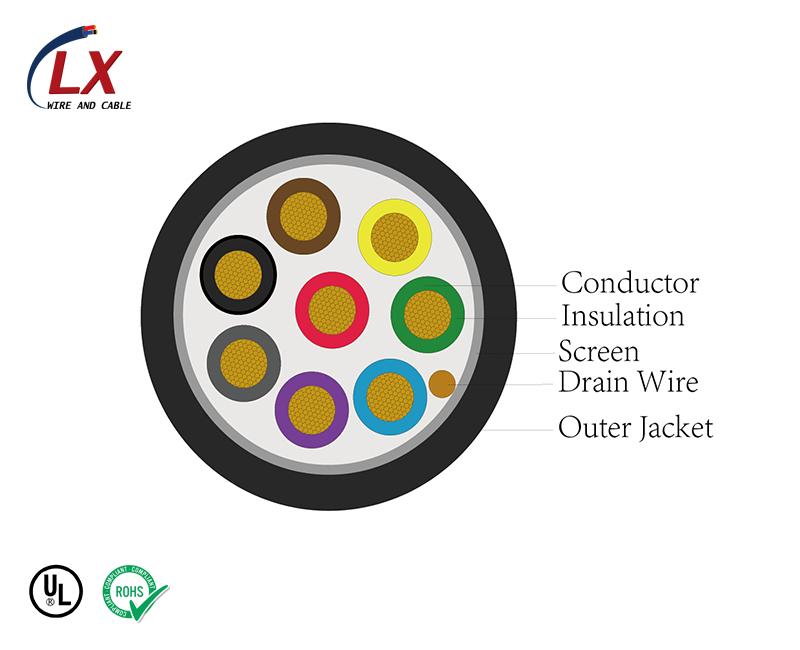

Construction Stranded, tinned or bare copper conductor
PVC jacket
Standard UL Subject 758 & UL1581
Passes UL VW-1 vertical flame test
Technical Data Rated Temperature-80
Rated Voltage-30V

Details

Part No. Core Numbers Conductor Size Conduct Construction Insulation Thickness Insulation Dia. Spiral Structure Jacket Thickness Maximum Resistance at 20
Num (AWG/MCM) (Num/mm) (mm) (mm) (Num/mm) (mm) (Ω/km)
20276-261 3P+1C 26 26 7/0.16 7/0.16 0.26 0.26 1.00 1.00 0.82 6.4 139 139
20276-281 3P+9C 28 28 7/0.127 7/0.127 0.12 0.12 0.63 0.63 0.95 4.7 223 223
20276-282 6P 28 7/0.127 0.12 0.63 0.7 4.7 223
20276-283 7P 28 7/0.127 0.12 0.63 0.9 5.3 223
20276-284 8P 28 7/0.127 0.12 0.63 0.74 5 223
