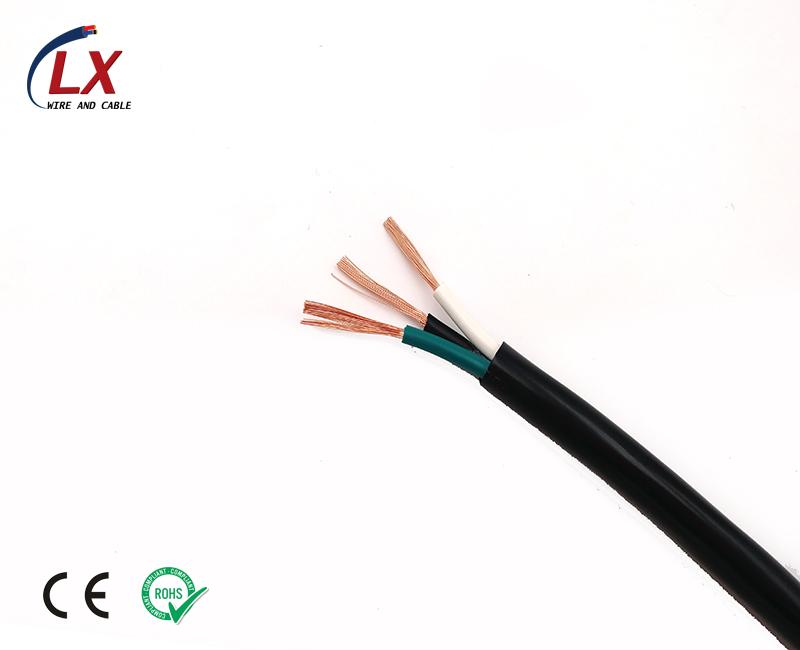

H03Z1Z1-F/H05Z1Z1-F

Date:2018-3-16



Cable Construction
Conductor Bare copper fine wire conductor,Stranded to IEC class 5 .
Insulation Thermoplastic  insulation
Jacket Halogen-fee thermoplastic  jacket
Technical Characteristics
Working voltage 300/300v(H03Z1Z1-F),
300/500v(H05Z1Z1-F)
Test voltage 2000(H03Z1Z1-F)/ 2500 (H05Z1Z1-F)volts
Minimum bending radius 5 x D
Mobile installation temperature -5o C to +70o C
Fixed installation  temperature -40o C to +70o C
Insulation resistance 20  x km
Flame retardant IEC 60332.1
Flame test flame-retardant acc. to EN 50265-2-1, IEC 60332.1
Smoke density acc. to EN 50268 / IEC 61034
Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2

Details

No. of Cores x Nominal

Cross Sectional Area

Nominal Thickness

of Insulation

Nominal Thickness

of Jacket

Nominal

Overall Diameter

Nominal

Copper Weight

Nominal Weight
# x mm2 mm mm mm kg/km kg/km
(H)03Z1Z1-F
2 x 0. 5 0.5 0.6 5 9.6 39
3 x 0. 5 0.5 0.6 5.3 14.4 46
4 x 0. 5 0.5 0.6 5.8 19.2 56
2 x 0.75 0.5 0.6 5.4 14.4 47
3 x 0.75 0.5 0.6 5.7 21.6 55
4 x 0.75 0.5 0.6 6.3 29 69
(H)05Z1Z1-F
2 x 0.75 0.6 0.8 6.2 14.4 58
3 x 0.75 0..7 0.8 6.6 21.6 68
4 x 0.75 0.8 0.8 7.1 29 81
5 x 0.75 0.8 0.9 8 36 102
2 x 1 0.6 0.8 6.6 19 67
3 x 1 0.8 0.8 6.9 29 81
4 x 1 0.8 0.9 7.7 38 101
5 x 1 0.8 0.9 8.4 48 107
2 x 1.5 0..7 0.8 7.4 29 87
3 x 1.5 0.8 0.9 8.1 43 109
4 x 1.5 0.8 1 9 58 117
5 x 1.5 0.8 1.1 10 72 169
2 x 2.5 0.8 1 9.3 48 138
3 x 2.5 1 1.1 10.1 72 172
4 x 2.5 1 1.1 11 96 210
5 x 2.5 1 1.2 12.3 120 260
2 x 4 0.8 1.1 10.6 76.8 190
3 x 4 1 1.2 11.5 115.2 242
4 x 4 1 1.4 12.5 153.6 298
5 x 4 1 1.4 14.1 192 371
